Scout Essentials

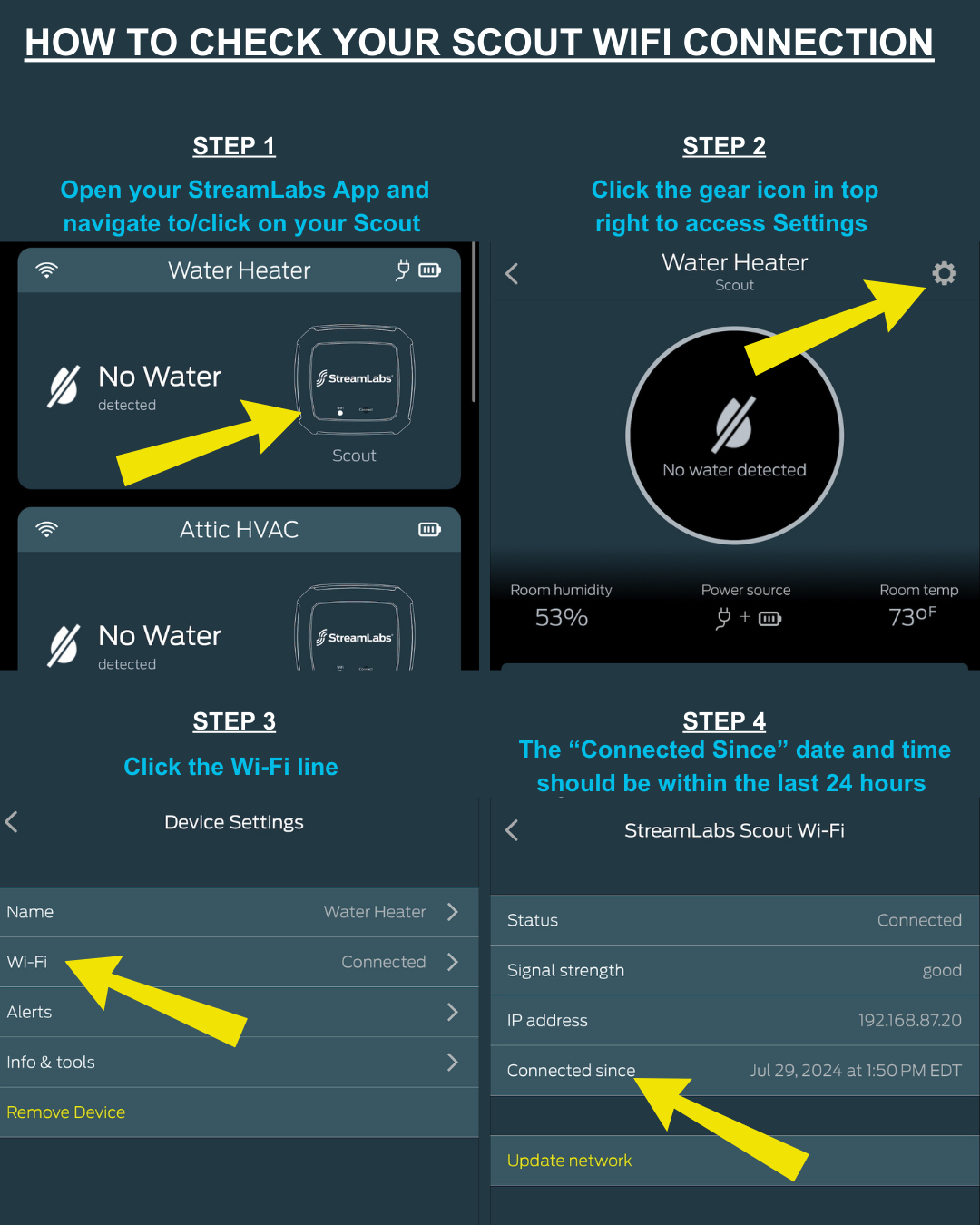

1. Open your StreamLabs App and navigate to/click on your Scout
2. Click the gear icon in the top right to access Settings
3. Click the Wi-Fi line
4. The “Connected Since” date and time should be within the last 24 hours

Battery Replacement Instructions

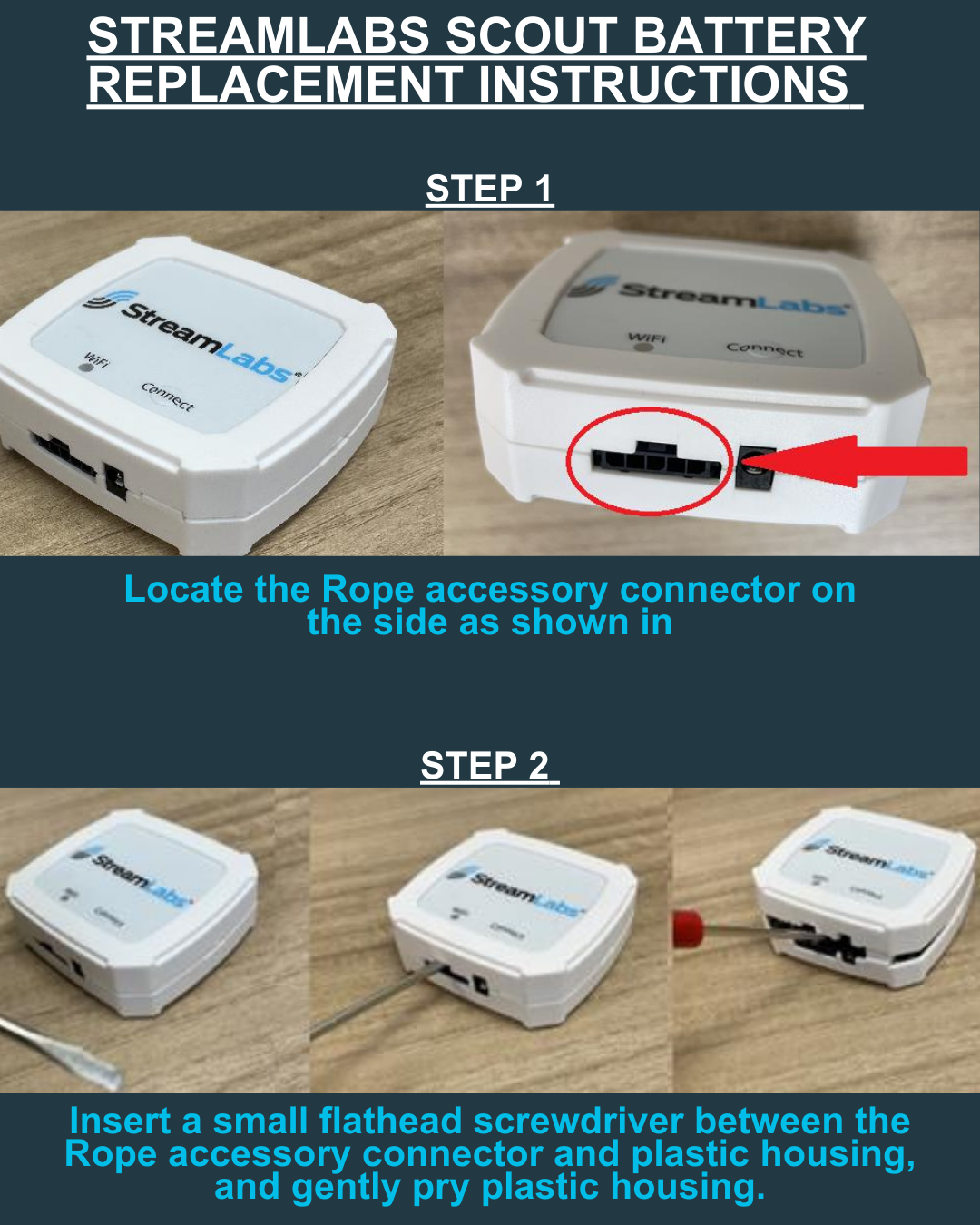

1. Locate the Rope accessory connector on the side as shown in
2. Insert a small flathead screwdriver between the Rope accessory connector and plastic housing, and gently pry plastic housing.

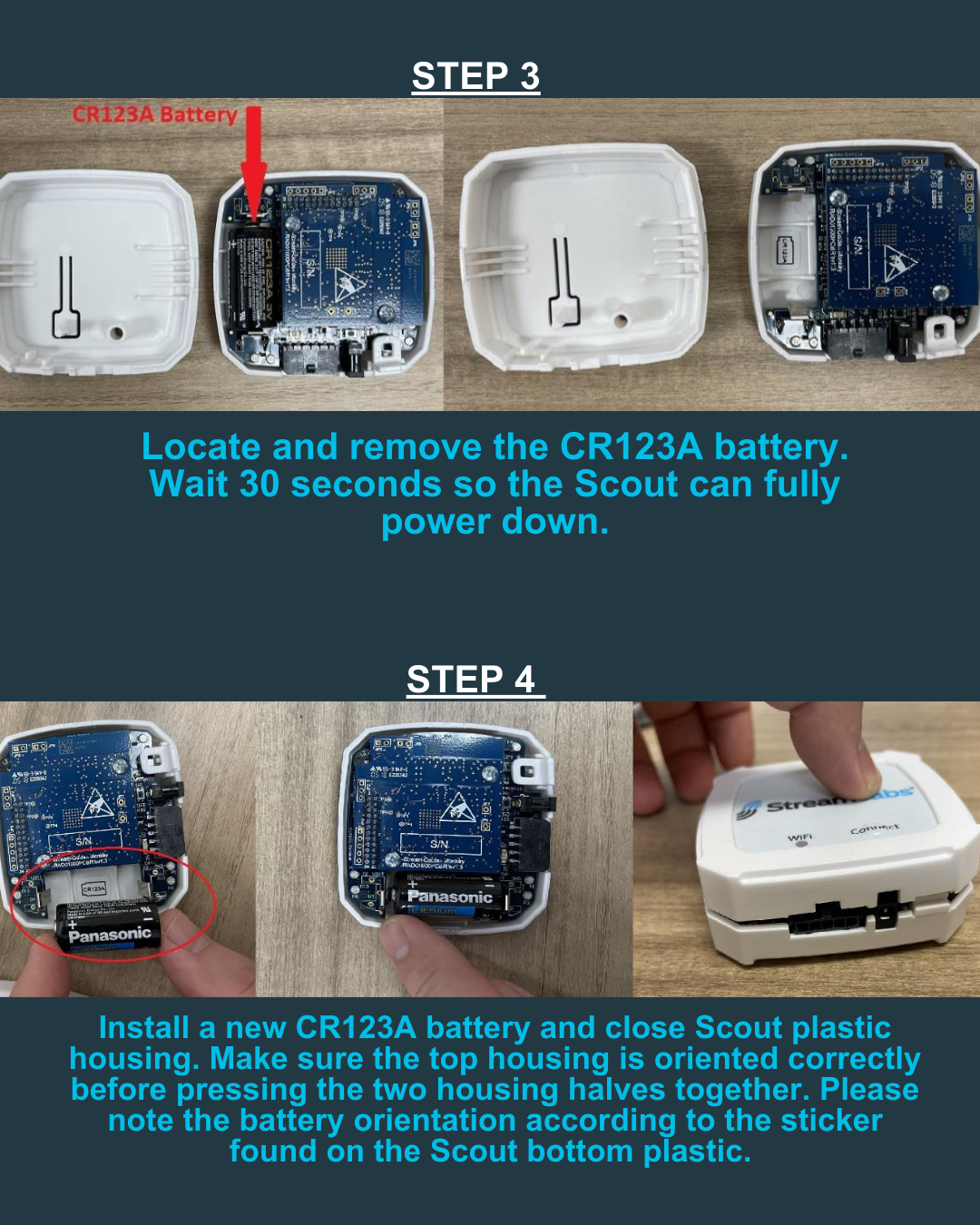

3. Locate and remove the CR123A battery. Wait 30 seconds so the Scout can fully power down.
4. Install a new CR123A battery and close Scout plastic housing. Make sure the top housing is oriented correctly before pressing the two housing halves together. Please note the battery orientation according to the sticker found on the Scout bottom plastic.
